CWL-50 Mechanical Mobile LPG Dispenser

Place of Origin : Shanghai, China

Brand Name : COWELL

Model Number : CWL-50

Packaging Details : Wooden case applicable for export

Payment Terms : T/T

Delivery Time : 20 Working days

Pump : LWB-150

Flow meter : LPG-2

Nozzle : Single

Warranty : 1 Year

Power : 5.5KW

Contact Now

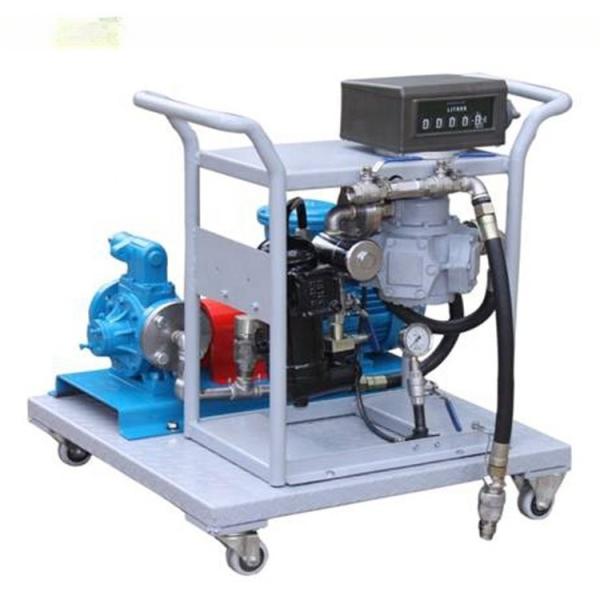

CWL-50 Mechanical Mobile LPG Dispenser


CWL-50 Mobile Dispenser is designed especially for LPG Cylinder Filling, and transport etc. It is easy to move and operate refilling.

Technical Specification

Flow Rate 85L/Min
Max Working Pressure 1.8MPa
Accuracy ±0.3%
Vacuum ≥0.035MPa
Totalizer 8 Digital
Sub-Total 5 Digital
Temperature -40oC~+55oC

Main Components

Flow Meter LPG-2 LPG Meter
Pump LWB-150 Vane Pump
Separator LPG Separator
Power

AC380±20% 50±1Hz or

AC220±20% 50±1Hz

Ex-proof Motor

380V,50Hz, 5.5KW or

220V,50Hz, 5.5KW

Outlet Hose 3/4" 500mm
Inlet Hose Flange
Breakaway Yes
Manometer Yes
